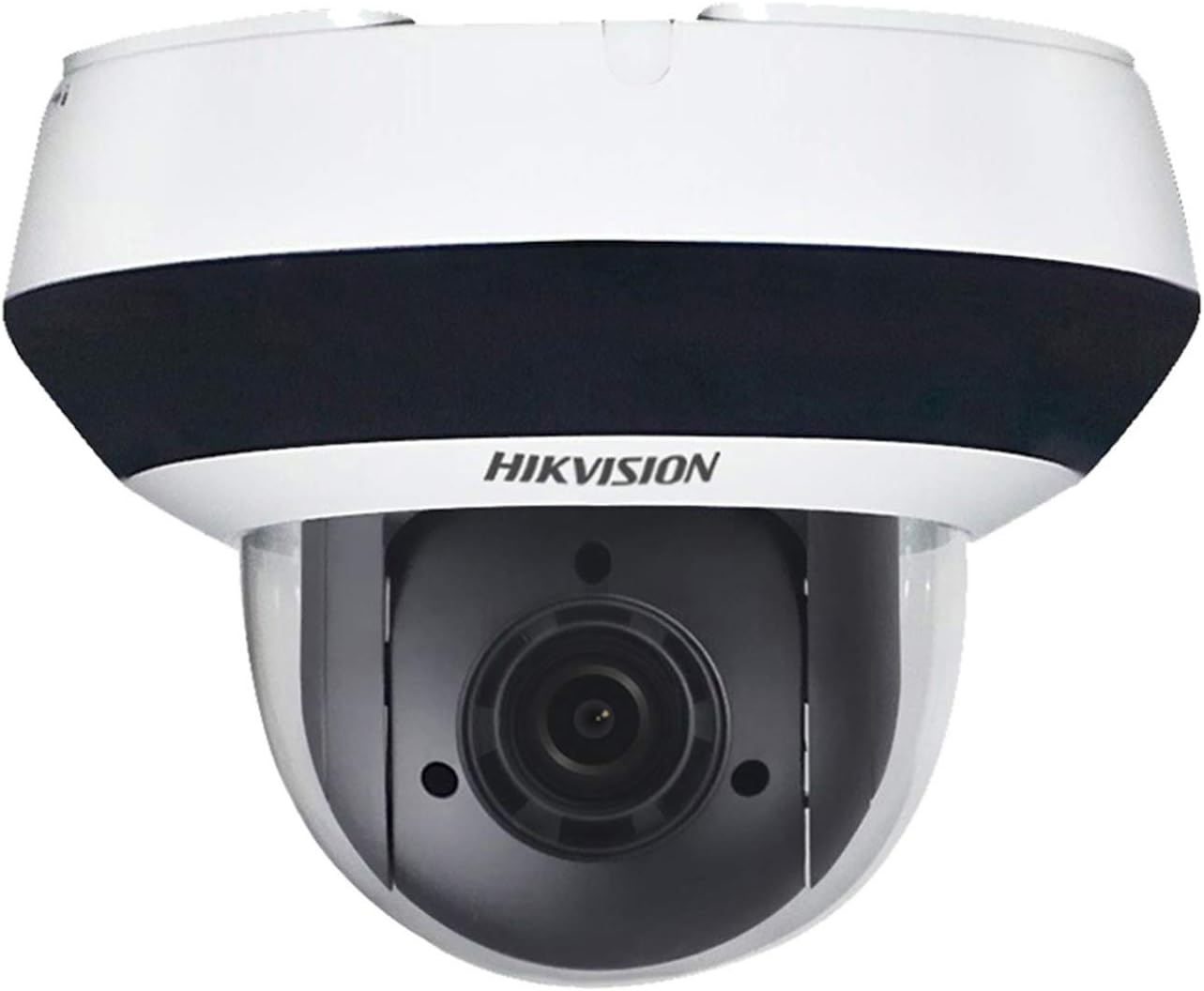

Hikvision 4MP POE Mini PTZ IP Camera DS-2DE2A404IW-DE3, 4X Optical Zoom, Smart IR Night Vision V728230
Hikvision 4MP POE Mini PTZ IP Camera DS-2DE2A404IW-DE3, 4X Optical Zoom, Smart IR Night Vision V728230
【Hikvision Original Camera】This is the Hikvision Original camera DS-2DE2A404IW-DE3. English version support upgrade，plug and play with any Hikvision or Hikvision compatible system.. 3 year warranty and life-time tech support
[HD Resolution，H.265+, POE ] Observe high-quality footage with a 1/3' Progressive Scan CMOS, UltraHD 4MP- Resolution (2560x1440@24fps) Provide a more HD and smoother visual experience. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression. Power Over Ethernet (POE) for easy installation.
[Pan/Tilt/2.8~12mm ZOOM] Pan: 0° to 330°，Tilt：0°~90°，2.8mm~12mm 4× optical zoom, 16× digital zoom，Auto focus，with a Wide 109° Rotating Field of View so you can take full control of your property and reach every angle. Support the 20m IR，Auto switch night vision.
[Micro SD, WDR, IP66 IK10] UP to 256G Micro SD Card Recoding，True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Subjected and certified to rigorous dust and immersion tests (IP66) and impact tests (IK10)
[Smart detection(VCA), Remote APP] VCA is a built-in video analytic algorithm by Hikvision, with Line crossing detection, Intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection. A camera with VCA quickly and accurately responds to monitoring events in a specific area. Camera can easy to add the camera to mobile phone via APP (Hik-Connect, EZVIZ, Guard Viewer), Preview and Recording in real time no matter where you are
Camera
Image Sensor: 1/3' progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
WDR: 120Db
Day& Night: ICR
Digital Zoom: 16×
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 2.8 to 12mm, 4× optical zoom
Zoom Speed: Approx. 2s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.6 to F2.7
Pan & Tilt
Pan Range: 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s，Preset Speed: 100°/s
Number of Preset: 300
Infrared
IR irradiation distance: 20m
IR irradiation angle: Adjustable by zoom
Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 2560 × 1440
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: OFF/Audio input/Audio output
General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 12 W (Max. 3.9 W for IR)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS

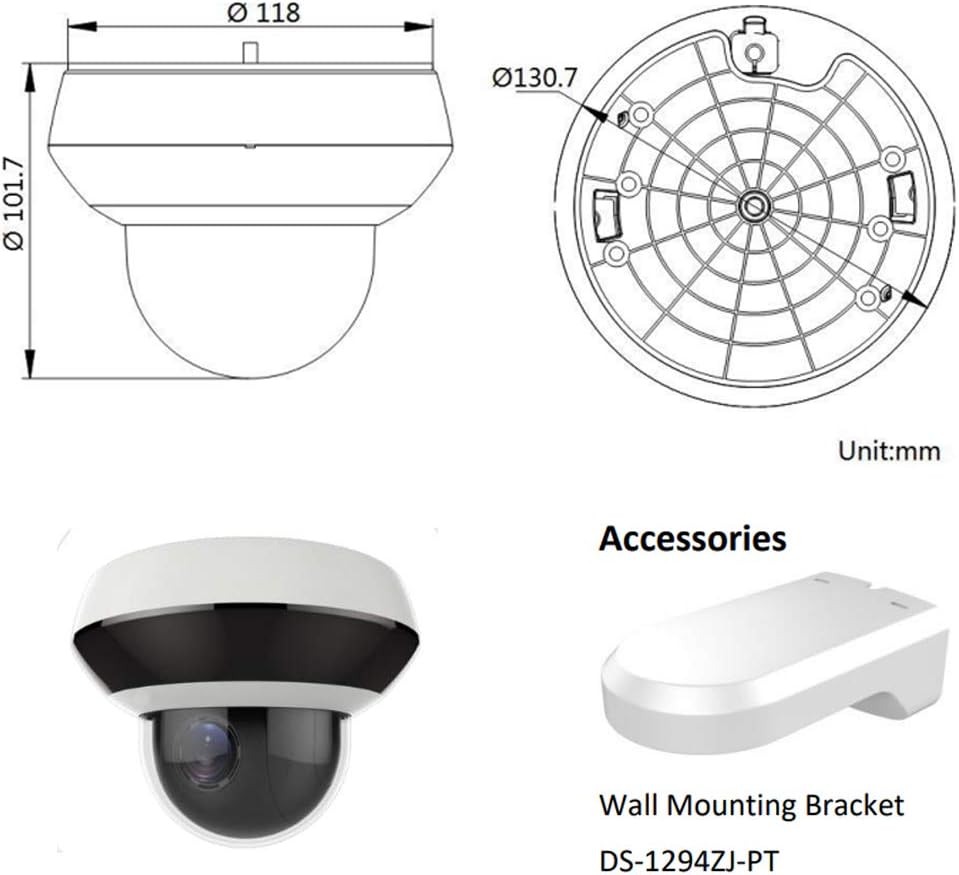

Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15' × 4.00')
Weight (approx.): Approx. 0.53 kg (1.17 lb)
